The Short Answer
On its own, using Twindo with a LiDAR-enabled device will yield accuracy tolerances of within 1-2% of manually verified dimensions. This is largely a function of the devices themselves, and you can read more about expected tolerances here: What kind of accuracy can I expect from Twindo?
If you require a higher degree of accuracy for specific critical dimensions, you may always send in manually-verified field measurements to accompany your order. This will "override" the scan for the measurements provided (where possible), and use the scan data for the rest.

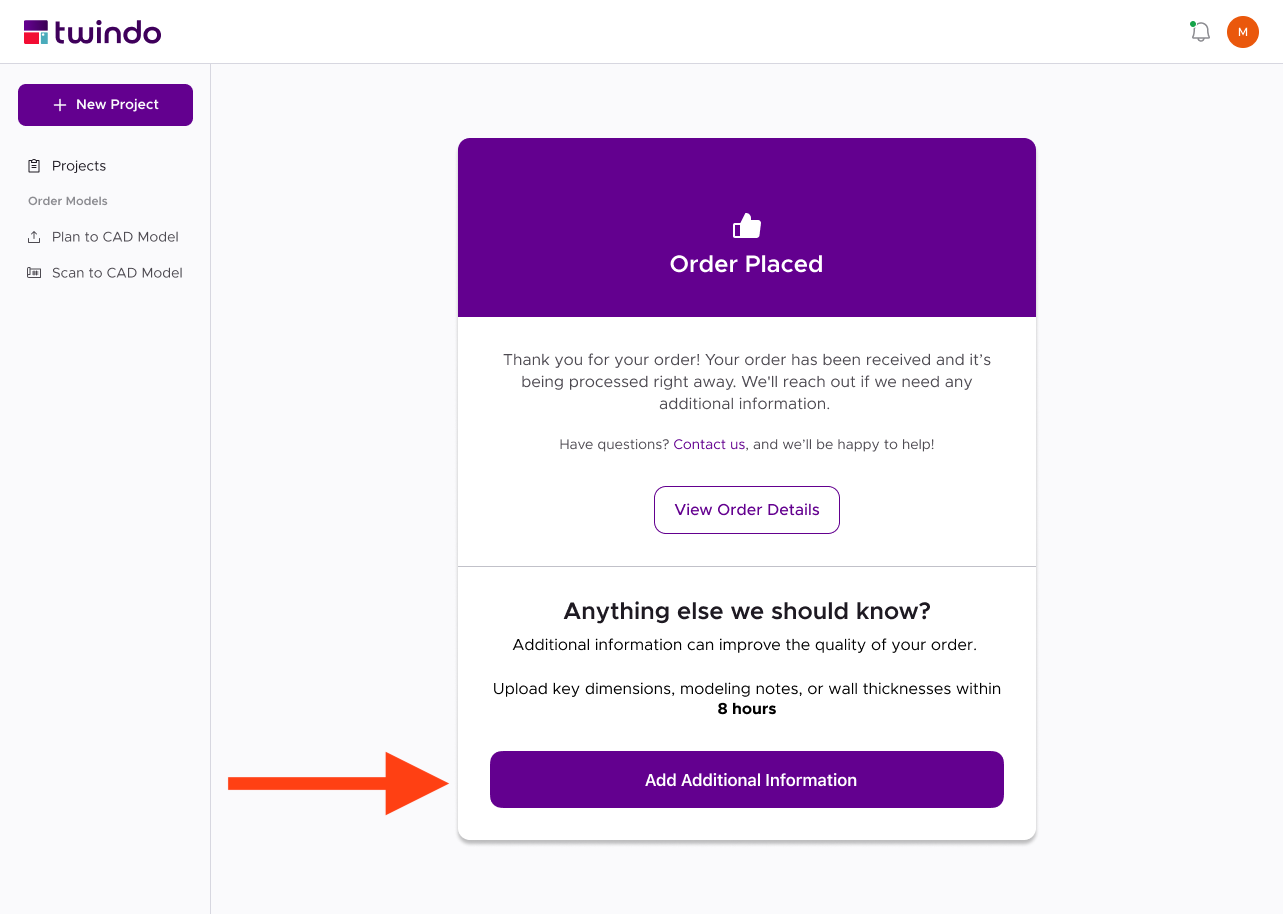

You may submit reference dimensions/materials either in the app or through the web portal using the "Add Additional Information" button which appears after your order has been placed. Wait until your order has fully uploaded, then submit the information as soon as possible: within 8 hours for a standard job or within 2 hours for a rush job.
The Long Answer
Reference Material Accuracy
Please note that when measurements are provided for incorporation into your order, we rely fully on both the accuracy of your measurements and the readability of your reference material. If the measurements provided are themselves inaccurate, or it's unclear what they refer to, this can lead to inaccuracies in your files or additional questions and revisions which delay your order. While we always will make our best effort to bridge the gap with you, we can not guarantee that all dimensions will precisely match.
In the rare case that reference material varies significantly from the scan, we will be unable to override the data from the scan without risking introducing significantly larger errors. This threshold is 6" for measurements under 300", and 12" for measurements above 300".
Scaling
The dimensions you provide are not used to "scale" the rest of the model, and are instead solely used to override that particular measurement from the scan. Error in 3D scanning is not uniform, so scaling all dimensions according to a single or few reference dimensions will not always make other dimensions more accurate. However, providing reference dimensions does have the effect of controlling error during the process and producing a more accurate overall model.
Guidelines For Submitting Manual Measurements
You may submit text notes, a photo or a drawing with manual measurements. For a drawing, please follow these guidelines:
- Your verified dimensions must be annotated in clear and legible text or handwriting, using English characters.
- Imperial or metric units are both acceptable; please denote which you are using.
- The start and endpoint for any dimension must be clear and unambiguous from the drawing, and not rely on "industry-standard" assumptions (e.g., does a door opening dimension include the casing around it or not – these vary significantly across industries).
- Send your drawing as an image or PDF — if you send another file type, it may not be accepted or it may require additional time to triage.
- A digital drawing is preferred, but a photo of a hand drawing is also acceptable if the photo is clear and readable.
Here is an example of a totally acceptable drawing submitted by a customer with their order as extra reference:
